The MD-811L4 is an integrated, modular, microprocessor-based Energy and Power meter with additional Demand Calculation capabilities with respect to time, based on actual or predicted demand. This is incorporated using advanced technologies capable of measuring multiple electrical parameters in three-phase systems. It is specially designed to simultaneously measure, display, communicate and control certain electrical parameters. The readings are displayed on a 4-line 16-character LCD display. The display can be configured for auto scroll or fixed display mode(s). The display scroll time can also be set.

For Maximum demand control, instantaneous Apparent Power must be computed over a period of time (based on the set value of integration period) and the demand will be calculated based on actual or predicted algorithm to switch ON the corresponding Digital output (up to 8 stages) based on the percentage value of the Demand set.

The Digital control output can be reset at the start of every Demand integration cycle and calculated again for the demand value. Each Maximum Demand output control (value in %) & Contract Demand value can be set using the Keypad/ through MODBUS communication via RS-485. The 8 stages of Digital output status (ON/OFF) will be displayed on the MD Controller. Once the unit restarts, all the Digital Output’s will be initialized and checked for the Demand value again to switch ON the corresponding Digital output based on the percentage value reached.

Features

Measures, displays and transmits the following parameters

• Voltage - Phase and Line
• Current - Phase and Line
• PF - Phase and Line
• Active Power (kW) – Phase and Line
• Reactive Power (kVAR) – Phase and Line
• Apparent Power (KVA) – Phase and Line
• Active Energy (KWh) – Import and Export
• Reactive Energy (KVARh) – Capacitive, Inductive
• Apparent Energy (KVAh)
• Demand Parameters – Average KW, Average KVA
• Maximum Demand – KW & KVA
• Frequency
• Voltage Unbalance %
• Current Unbalance %
• Display Modes
• Display Type: 4 Line Backlit LCD with selectable scroll time.
• Display Modes:  There are 2 modes of display that are available to users. Mode 1 can be displayed with a full list of parameters, while Mode 2 displays a short list of line parameters.
• Unit Selection: Parameter units can be selected as Normal and Kilo Mode. If the meter is connected to the LT side of the distribution system, the parameters are displayed in Volt, Amp and KW mode. If the meter is connected to the HT side of the meter, the parameters are displayed in KV Mode as KV, A and MW.
• Connection type: Meter can be connected in 3 phases, 3 wires or 3 phase 4 wire configurations. Connection mode is selectable between star and delta.
• Memory: The meter contains internal memory to store data for 60 days at 15-minute intervals. The meter can store basic parameters such as Phase Voltages, Phase Currents, Line PF, KW, KVAR, KVA, KWH (Import & Export), KVARH (+/-), KVAH, Demand KW, Demand KVA and Peak Demands. The interval for data storage is selectable from 1 to 99 minutes. The records are time stamped while storing the data into the memory. Optionally, The RM 705 Meter stores the Maximum/Minimum values of individual parameters along-with the timestamp of the logging interval. These logs can be downloaded later by using the software.
• Communication: The meter features a RS-485 communication port. The meter communicates to the master device using the MODBUS RTU Protocol and has a response time to the master queries of less than 10ms.
• Time Synchronization: The meter has RTC built in. The meter time can be synchronized with the server time to avoid miscalculating energy consumption due to incorrect time stamps.
• Digital Output (8 stages) for Power Factor Correction:Each stage is optically isolated with a direct drive of AC/DC of up to 230V and can be interfaced to each capacitor Bank coil. Each capacitor bank will in turn be energized based on the Capacitor Bank Value with respect to the required PF value correction. The set limits can be placed through keypad interfaces as well as via the Modbus communication protocol.  If any of the coils are energized and switched OFF the same will be re- energized only after switching OFF the other stages
• Digital Outputs & Digital Inputs: This is an optional feature. The meter comes with two Digital Outputs and two Digital Inputs. The outputs can be used for alarms or switching and inputs can be used for Breaker Status monitoring.
• Auxiliary Power supply: The meters can be powered from both 100 – 300 V AC/ DC. This enables the use of station DC supply wherever possible to avoid meter stoppages due to AC failure.
• Accuracy: The meter has the accuracy class of 0.5 as per IS 14697/IEC 60687 for Active Energy and 0.2 % for basic parameters like Voltage & Current.  The minimum sensing current of meter without loss of accuracy is 10 mA for 1/5A CT.
• CT & PT Ratio: The user can configure the primary and secondary values of CT & PT as per the field requirements. This enables the user to swap the meters from one location to other location as and when required.

The RM-705 DS is an AC Static Three-phase CT Operated Electronic Dual Source Energy Meter that measures basic Power and Energy parameters and controls the load based on energy consumption. It is specifically designed to measure the Electricity board & DG source operating parameters separately and has the TOD measurement and prepayment control for active energy.  This meter is rugged in construction and monitors a wide load range with high sensitivity and low power loss. The RM-705 DS has a built in Tamper Events Capture, RTC and high-speed communication modules. All features comply with Indian and International standards.

Features

Source Identification for EB & DG using Digital input or by setting the MODBUS register.

Measures, displays and transmits the following parameters

• Voltage - Phase and Line
• Current - Phase and Line
• PF - Phase and Line
• Active Power (kW) – Phase and Line
• Reactive Power (kVAR) – Phase and Line
• Apparent Power (KVA) – Phase and Line
• Active Energy (KWh) – Import and Export
• Reactive Energy (KVARh) – Capacitive, Inductive
• Apparent Energy (KVAh)
• Demand Parameters – Average KW, Average KVA
• Maximum Demand – KW & KVA
• Frequency
• Voltage Unbalance %
• Current Unbalance %
• Separate Recording of EB Energy & Demand
• Separate Recording of DG Energy & Demand
• DG Run hours & EB Run Hours
• No of times DG ON

Display Modes

Display Type: 4 Line Backlit LCD with selectable scroll time.

Display Modes: There are 2 modes of display that are available to users. Mode 1 can be displayed with a full list of parameters, while Mode 2 displays a short list of line parameters.

Unit Selection: Parameter units can be selected as Normal and Kilo Mode. If the meter is connected to the LT side of the distribution system, the parameters are displayed in Volt, Amp and KW mode. If the meter is connected to the HT side of the meter, the parameters are displayed in KV Mode as KV, A and MW.

Connection

Connection Type: Meter can be connected in 3 phases, 3 wires or 3 phase 4 wire configurations. Connection mode is selectable between star and delta.

Memory: The meter contains internal memory to store data for 60 days at 15-minute intervals. The meter can store basic parameters such as Phase Voltages, Phase Currents, Line PF, KW, KVAR, KVA, KWH (Import & Export), KVARH (+/-), KVAH, Demand KW, Demand KVA and Peak Demands. The interval for data storage is selectable from 1 to 99 minutes. The records are time stamped while storing the data into the memory.

Optionally, The RM 705 Meter stores the Maximum/Minimum values of individual parameters along-with the timestamp of the logging interval. These logs can be downloaded later by using the software.

Communication

The meter features a RS-485 communication port. The meter communicates to the master device using the MODBUS RTU Protocol and has a response time to the master queries of less than 10ms.

Time Synchronization

The meter has RTC built in. The meter time can be synchronized with the server time to avoid miscalculating energy consumption due to incorrect time stamps.

Digital Outputs & Digital Inputs

This is an optional feature. The meter comes with two Digital Outputs and two Digital Inputs. The outputs can be used for alarms or switching and inputs can be used for Breaker Status monitoring.

Auxiliary Power Supply

The meters can be powered from both 100 – 300 V AC/ DC. This enables the use of station DC supply wherever possible to avoid meter stoppages due to AC failure.

Accuracy

The meter has the accuracy class of 0.5 as per IS 14697/IEC 60687 for Active Energy and 0.2 % for basic parameters like Voltage & Current.  The minimum sensing current of meter without loss of accuracy is 10 mA for 1/5A CT.

CT & PT Ratio

The user can configure the primary and secondary values of CT & PT as per the field requirements. This enables the user to swap the meters from one location to other location as and when required.

The RM-506K is a superior Static Energy Meter that helps in Energy Accounting to identify energy saving opportunities. It also helps track and measure the success of Energy Efficiency initiatives

An Energy Accounting system is a critical part of an Energy Management plan. For any Energy Management plan to be successful it must include information on past and current Energy Consumption patterns. Without this information it is impossible to understand, measure or convey the progress of an overall energy management strategy.

The Energy Accounting System provides energy usage analysis and cost allocation for individual generation units, areas as well as the entire system. The RM-506 K can track energy usage and helps in creating energy billing reports based on user-definable energy cost functions and energy tariffs. The energy cost; profit analysis and energy production; and consumption billing are reported for generators and inter-tie exchanges are made simple.

FEATURES

Software Integration

RM-506K generates proportional pulses that can be integrated with a main line Energy Management System or SCADA system to provide remote display of Energy readings.

Time Synchronization

Time of measurement is very important in Energy Accounting. The meter’s clock can be set using front panel push buttons

Energy Measurements

• Current KWh
• Last Hour KWh
• Last Day KWh
• Last Month KWh
• Date
• Time

Accuracy

• Class 1.0 Standard
• Class 0.5S Optional

Built in RTC(LCD Version only)

Accuracy 1 min per month

Accuracy Standards

• IS 13779
• IEC – 62053 – 22
• IS – 14697 : 1999

Optional Features

Digital Output for Benching Marking Control of alarm/control

Available Types

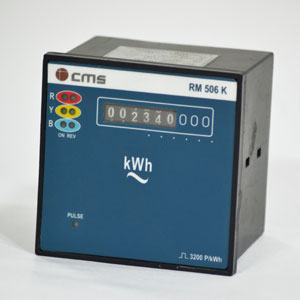

• RM 506 K with mechanical counter
• RM 506 K with LCD display for Current, Last Hour, Last Day, Last Month Energy readings

Energy Accounting & Bench Marking

Identify major load centers, allocate energy consumption norms, monitor deviations and refine norms for better specific energy consumption.

Load Analysis

Monitor the energy input and compare with equipment output for better energy performance of equipment.

The PF-811L4 is an integrated, modular, microprocessor based Energy and Power meter with additional Power Factor correction using advanced technology, capable of measuring multiple electrical parameters in three-phase systems.

The PF-811L4 is specially designed to simultaneously measure, display, communicate and control certain electrical parameters. The readings are displayed on a 4 -line 16-character LCD display. The display can be configured for auto scroll or fixed display mode. The display scroll time can be set as well. For power factor correction, the instantaneous Reactive Power is computed as required. The kVAr value & the power factor can be fine tuned by switching ON the corresponding capacitor banks for up to 8 stages. Once the capacitor bank is switched OFF, it will come ON again after a 3 minutes delay. Each capacitor Bank value & required power factor value can be provided using the Keypad/through Modbus communication via RS485. The 8 stages of capacitor Bank status (ON/OFF) will be displayed on the unit. Once the Meter restarts, all the Digital Output’s will initialize and check for the required kVAr again to switch ON the corresponding Capacitor Bank based on the kVAr.

Features

Measures, displays and transmits the following parameters

• Voltage - Phase and Line
• Current - Phase and Line
• PF - Phase and Line
• Active Power (kW) – Phase and Line
• Reactive Power (kVAR) – Phase and Line
• Apparent Power (KVA) – Phase and Line
• Active Energy (KWh) – Import and Export
• Reactive Energy (KVARh) – Capacitive, Inductive
• Apparent Energy (KVAh)
• Demand Parameters – Average KW, Average KVA
• Maximum Demand – KW & KVA
• Frequency
• Voltage Unbalance %
• Current Unbalance %
• Display Modes

Display Type: 4 Line Backlit LCD with selectable scroll time

Display Modes: There are 2 modes of display that are available to users. Mode 1 can be displayed with a full list of parameters, while Mode 2 displays a short list of line parameters.

Unit Selection: Parameter units can be selected as Normal and Kilo Mode. If the meter is connected to the LT side of the distribution system, the parameters are displayed in Volt, Amp and KW mode. If the meter is connected to the HT side of the meter, the parameters are displayed in KV Mode as KV, A and MW.

Connection type: Meter can be connected in 3 phases, 3 wires or 3 phase 4 wire configurations. Connection mode is selectable between star and delta.

Memory: The meter contains internal memory to store data for 60 days at 15-minute intervals. The meter can store basic parameters such as Phase Voltages, Phase Currents, Line PF, KW, KVAR, KVA, KWH (Import & Export), KVARH (+/-), KVAH, Demand KW, Demand KVA and Peak Demands. The interval for data storage is selectable from 1 to 99 minutes. The records are time stamped while storing the data into the memory.

Optionally, The RM 705 Meter stores the Maximum/Minimum values of individual parameters along-with the timestamp of the logging interval. These logs can be downloaded later by using the software.

Communication: The meter features a RS-485 communication port. The meter communicates to the master device using the MODBUS RTU Protocol and has a response time to the master queries of less than 10ms.

Time Synchronization: The meter has RTC built in. The meter time can be synchronized with the server time to avoid miscalculating energy consumption due to incorrect time stamps.

Digital Output (8 stages) for Power Factor Correction

Each stage is optically isolated with a direct drive of AC/DC of up to 230 V and can be interfaced to each capacitor Bank coil. Each capacitor bank will in turn be energized based on the Capacitor Bank Value with respect to the required PF value correction.The set limits can be placed through keypad interfaces as well as via the Modbus communication protocol.  If any of the coils are energized and switched OFF the same will be re- energized only after switching OFF the other stages

Digital Outputs & Digital Inputs:This is an optional feature. The meter comes with two Digital Outputs and two Digital Inputs. The outputs can be used for alarms or switching and inputs can be used for Breaker Status monitoring.

 Auxiliary Power supply

The meters can be powered from both 100 – 300 V AC/ DC. This enables the use of station DC supply wherever possible to avoid meter stoppages due to AC failure.

 Accuracy

The meter has the accuracy class of 0.5 as per IS 14697/IEC 60687 for Active Energy and 0.2 % for basic parameters like Voltage & Current.  The minimum sensing current of meter without loss of accuracy is 10 mA for 1/5A CT.

 CT & PT Ratio

The user can configure the primary and secondary values of CT & PT as per the field requirements. This enables the user to swap the meters from one location to other location as and when required.

An energy accounting system is a critical part of an energy management strategy. For any energy management strategy to be successful it must include information on historic energy consumption trends and patterns. Without this information it is impossible to understand or communicate in any measurable way the progress of the overall energy management strategy or any energy-saving measures.

The RM-506K is a low cost, affordable and simple static energy meter. It has a pulse output, which can be connected to any data logger as a part of an energy accounting system

Advantages

• Provide a foundation for a successful energy management strategy.
• Record and track the progress of energy saving strategies.
• Provide a basis for setting realistic energy savings goals
• Indicate possible areas that can improve O&M.
• Motivate O&M staff by continuously providing feedback through shift/daily/monthly reports.
• Specific EnergyConsumptionAnalysis

Features

• Low cost
• Class 1.0 Accuracy
• IS 13379 standard
• Easy to Install & Use
• True RMS Measurements
• CT/PT Ratio site selectable
• Isolated Open Collector pulse output
• Low VA Burden
• No Mechanical wears & tear.
• Self Powered
• Used for 3 phase balanced and unbalanced loads
• 3phase 3 wire or 3 phase 4 wire modes are configurable using jumpers

SEAS – Energy Accounting Software

SEAS is a simple, device driver based energy accounting system. It features Network Configuration, Communication & Reporter modules. It monitors energy readings from energy counters and stores them in the database with time stamps. The Reporter will enable users to select the energy meters and time for any energy report preparation. It generates the report in MS Excel.

The ELNet-PQ power meter is a highly accurate (0.1-0.2%), multi-functional, three-phase EN50160power quality analyzer, especially designed to meet the stringent specifications of power and energy measurement in any electrical installation.

ELNet-PQ includes historic data logging and supports standard communication protocols; while integrating easily with Building Management Systems.

An indispensable tool for the Building Engineer, it aids efficient use of electricity by showing Power Factor, Peak usage, Current in Neutral Line and Harmonics up to the 64th

FEATURES

• Multi-functional three-phase Power and Energy powermeter
• Accuracy of 0.1 – 0.2% with spatial calibration.
• EN50160 testing reports
• On events waveform recording
• Measures Power: Active Reactive Apparent.
• Measures Power Quality, Malfunctions and Interruptions, and records Peaks
• Shows Voltage, Current, Frequency, Current in Neutral Line and Power Factor
• Total integration with Building Management Systems
• Flash memory stores 2 years of information
• Simple Multi lingual menus
• Build-In RS232/485 Communication Port
• Build-In Ethernet 10BaseT Communication Port
• SupportsMODBUS& MODBUS/TCP communication protocols.
• 320 X 234 Color LCD display.
• Displays up to the 64th Harmonic in Waveform or Graphic.
• Data comparison on a weekly/ monthly/ yearly basis.
• Simple installation.
• Easy operation

The ELNet LT is a Power and Energy Meter that also has the ability to measure Harmonics. It is a compact, multi functional, three-phase powermeter that is simple to install and specially designed to integrate into Building Management Systems. It requires no special mounting and is ideally suited for mounting on the front face of any standard electrical panel.

The Configuration and Setup is menu driven, with password protection.Communication with external devices is simple and based on standard known protocols.

The ELNet-LT includes historic data logging and supports standard communication protocols. An indispensable tool for the Building Engineer, it aids the efficient use of electricity by showing Power Factor, Maximum and minimum demand, Current in Neutral Line and Harmonics up to the 64th.

Features

• Multi-functional three-phase Power and Energy powermeter
• Accuracy of 0.1-0.2% with special calibration
• Measures Active, Reactive &Apparent Power
• Measures Power Quality and Malfunctions
• Shows Voltage, Current, Frequency, Current in Neutral Line and Power Factor
• Full integration with Building Management Systems
• Flash memory stores 6 months of energy
• Simple Multi-lingual menus
• Built-In RS485 Communication Port
• SupportsMODBUS communication protocols.
• 320 x 240 Color LCD display
• Displays up to the 64th Harmonic in Waveforms or Graphics
• Simple installation & Easy Operation

The EEBS software can be used to develop the following applications at any time without any much extra cost.

• Automatic Meter Reading System
• Automatic Energy Billing
• Revenue monitoring and MIS
• Power Allocation and Load Management
• Distribution Management System
• Integration into any Substation Automation application

The main components of EEBS Software are:

• Network Management and Configuration Module
• Facility Management and Configuration Module
• Billing Module
• Receipts Module
• Energy Accounting and Balancing Module
• Pre-Paid Coupon Generation Module
• MIS Module
• Viewer for front end GUI
• Reporter
• Alarm Module for pop-up alarms
• Query Wizard Processor for Data analysis
• SMS Server for sending emails on alters
• Web Server for distribution of viewer views over LAN/WAN/WWW.
• Schedulers for report generation & distribution.

CMS EEBS software is windows based application and performs the following functions.

• Polls Energy Meters, DCUs at predefined intervals for Power and Energy data
• Polls a specific Energy Meter or DCU on request
• Collects the logged data from Energy Meters or DCUs
• Segregates the data meter wise
• Stores the energy data in the meter database
• Contains features to enter operating parameters of the loads
• Calculates and presents the information in real time
• Generates set point alarms based on the calculations done by the meter parameters using arithmetic, logical functions, and so on.
• Presents the data in predefined formats to the front end screen
• Online/Historical data view of the meters, layer wise
• Generates user definable energy consumption reports in Microsoft Excel
• Exports the data to SAP
• Analyses data and presents the information.
• Sends Audio, Video & SMS alerts on events

The user can easily develop following MIS applications at any time. The software provides all the tools to make additions at any time.

• Generation of reports on the Consumer wise / Building Wise / Block Wise Energy consumption analysis
• Generation of reports on the Consumer wise / Building Wise / Block Wise Load Profile analysis
• Generation of reports to study the electrical equipment outages , power outages Consumer wise / Building Wise / Block Wise
• Generation of reports on Bills and receipts
• Generation of reports on Energy & finance accounts

Key features

• Expandable in network and can add any number of Consumer Meters; add secondary servers and Work Station PCs any time with ease; uses MS Excel interface for complex data processing and control functions
• Meter Data acquisition: Collects data from power and energy meters over Internet, Ethernet, Modem, and can integrate with third-party meters, equipment and Data servers
• Data Exchange: Exchange data with existing SCADA, automation and business systems, which are compliant with ODBC and OPC standards
• Web Services: Available over intranet users for customized graphical views of system diagrams, real-time and historical data, status indicators and alarm messages
• Reports:  Scheduled, Event Driven, user configured, custom reports using Microsoft Excel. Auto distribution via email or web
• Data Trends: Tabular and graphical presentation of any combination of measured or derived parameters
• Alarms and Status: Pop-up simple, complex conditions; SMS alarm notifications; log Alarm Events with timestamp information.
• Execute Commands: Can Run command applications while alarm notifications can be used for a wide variety of applications starting from opening file folder to closing a load.
• The database is SQL SERVER 2008 Express

EEBS Viewer

• Views Single Line Diagrams (SLD) for clear power distribution across the facility with easy navigation from screen to screen from any of the workstations across the network.
• Creates user diagrams to display text box type, tabular type, graphical type, and image type data, runs command applications in a single user diagram.
• Displays real-time power and energy measurements, derived parameters, historical trends and data logs, alarm conditions, equipment status, control triggers and analysis tools.
• Uses MS Excel interface to perform sophisticated data computations, then display and log derived values.
• Selects meter templates, group display and customized queries for quick and easy information access.
• Set up command buttons to navigate between diagrams, open data tables or run command applications.
• Store the user diagrams in relevant path convenient selection of views.
• Easily extract and analyze selected ranges of information from the database using a query wizard.

EEBS Reporter

• Generates scheduler or event driven reports. Distribute Reports automatically over email or intranet web sharing.
• Standard reports: Generate reports through Microsoft® Excel™ using a fast and convenient report wizard interface. Daily Load Profiles, DG Operation Reports, Daily Power Outage Reports, Monthly Energy Consumption reports are available and modifiable.
• Aggregate Billing reports – System-wide usage patterns over the specified date range, including timestamps and peak usage.
• Custom reports: Use Visual Basic® for Applications or any off-the-shelf SQL Server reporting tools, such as Crystal Reports®, to customize reports and enable further analysis. Combine e-Tools data with other databases to reveal true business conditions.

EEBS Alarms & Controls

• Configure alarms to pop a message or trigger an event for equipment outages, power down time or equipment conditions.
• Annunciate alarms through operator workstations, hooter announcements, audio announcements, and email, SMS messages customized for the task.
• Configure complex alarm conditions including the historical data addition into the alarm derivation formula.
• Log complete information on an event, including related coincident conditions with accurate timestamps.
• Perform fast, manual control operations by clicking on-screen trigger buttons; operate remote breakers, relays and other power distribution and mitigation equipment, using specially developed drivers for actuating the signals.

Advantages of CMS EEBS software

• Energy Meter Independent; uses the meter templates & driver for data collection; this gives the user the flexibility of data collection from any type or any make of Energy Meter by developing device drivers
• The software can integrate meters data and status data of the DI/DO modules in generating the control signals.
• CMS EEBS is easily upgradeable. The network configurations can be changed on field.
• The applications can be enabled or disabled based on the operating conditions or manually operated soft keys.
• Can also be integrated with pulse type Energy meters.
• No tag/ meter limits
• On-screen formats are user definable at any time
• Multi level password protection
• Web server is readily available at no extra cost.
• Optional OPC Server for exporting to other DCS & SCADA system
• The software can run simultaneously on another server for redundancy purpose and can switch between the servers without loss of any data.

Possible Future Expansions

The CMS EBS software has the capability of reading all types of Energy meters using its meter templates. The software can also be integrated with devices like Multifunction meters and RTU’s. The network can also be expandable by adding DCUs/ meters without any extra cost on software.  Following are some of the applications that can be generated without extra cost on software.

Demand Management

PF Optimization

Energy Auditing

Distribution Transformer metering

Distribution Loss analysis

e-Tools software is a comprehensive Energy Management solution for energy generating companies and industrial or commercial energy users. It gives power plant personnel the information they need to maximize UI revenues. For energy users, it provides information to understand the areas where energy losses are taking place and the factors contributing to these losses so that the needed strategies can be formulated to bring down these losses.

The software can be used on a wide range of networked media including RS-232, RS-485, Ethernet and wireless, to automatically collect and store data from metering or control devices. Its Web-enabled access provides immense flexibility in sharing Energy Information to all plant personnel ranging from electrical maintenance, operations, decision makers in top management, O&D, Engineering, Commercial departments and so on.

E-Tools helps users watch real-time power conditions, analyze power quality and reliability, and respond to alarms to avoid critical situations. It helps study historical trends to reveal energy generated VS available capacity, as well as verify efficiency improvements.  The software uses SQL to customize arithmetic and logical data analysis.

Key Features

• Scalable in network size and number of devices with a flexible architecture. Users can add hundreds of metering points to their systems, and add secondary servers and workstation clients at their convenience. It uses MS Excel interface for complex data processing and control functions.
• Collects data from power and energy meters over RS-232, RS-485, Ethernet, wireless (GSM/GPRS) and other industry standard networking methods. It also integrates with third-party meters, equipment and web services
• Shares data with third-party SCADA, Plant automation and Commercial business systems like PI servers, SAP/ERP. Compliant with ODBC and OPC standards
• Accessible over intranet for customized system data screens, real-time and historical data, status indicators and alarm messages
• Modules for preconfigured and custom reports.
• Supports Microsoft Excel and other third-party reporting tools. Reports can be scheduled for distribution via email or web
• Provides online/offline trends: It can graph any combination of measured parameters; and aggregate loads
• Built in Alarm Manager to trigger complex conditions, generate alarm messages, and log all relevant event data
• Built-in functions to trigger applications to control an external MODBUS device: The set points can be operated manually or automatically
• Supports SQL SERVER 2008 Express

Real-time monitoring

• Displays Single Line Diagrams (SLDs) visualizing main distribution system across one or more substations or PCCs. These diagrams are accessible from any workstation PC, locally or over intranet.
• Displays real-time power and energy measurements in meter templates or group wise; historical data with selectable queries and data logs; alarm status and load status (on/off, temperature, pressure, etc.) as selectable menu items.
• Uses MS Excel to perform sophisticated data computations. Displays and logs derived values based on real-time data.
• Easy to design user diagrams for customized views representing readings in numbers, bar or trend graphs, one-line with back ground elevation diagrams, maps, photos and animation
• Easy to switch between diagrams, easy to move to deeper levels of detail, for example, start with a substation overview then move to open a feeder diagram, then move to see a device template for real-time data and open pre-configured queries for historical data analysis.
• Groups relevant devices and parameters together to gain convenient status readouts.
• Easily extract and analyze a selected range of information from the database using a query wizard

Reporting

The eTool Reporter comes with a manual report generator to generate reports manually at any time and configure reporting schedules.  The Schedule Reporter can also distribute reports automatically over email. The scheduled reports are concurrently saved to a folder on the plant intranet for easy access.

Reports are generated in Microsoft® Excel™. The Excel sheets can be formatted as per the user requirement based on the queried data. Daily ABT Reports, Shift wise ABT reports, Negative UI Analysis Report, ABT GAP reports are available and modifiable.

The reports can be of a wide time range starting from block wise, hourly, daily, weekly, monthly, quarterly or yearly intervals for any and all parameter logs.

The reports are further customizable using VBA or with any SQL Server reporting tools. The reports can also combine e-Tools data with other databases to make more advanced energy management reports.

Trend Analysis

• Generates a maximum of eight parameters in any single diagram either as separate graph scales or on a single scale.
• Generate graphs of any measured or derived parameter.
• Graph aggregates load profiles from multiple metering points or compare related parameters from across your enterprise.
• Create usage profiles to reveal demand peaks, over load trends, or unused plant capacity
• Track plant-wide energy-related costs for each substation, feeder, process or equipment or area.

Alarms and Events

The Alarm Manager can be used to generate alarms on block outs, outages, load tripping, equipment down time etc.

The user can configure alarms to generate messages on power outages, power supply variations in Voltage & frequency, over load and unload limit crossings or equipment conditions.

Can generate alarms on communication failures from metering devices or network component failures.

Alarm messages can be distributed through operator workstations, email, and SMS as customized pre-configured message texts.

Alarms can also be configured using combinational logic in MS Excel to generate on complex or summary conditions based on logged data and automatically generate notifications, upload all associated event data to generate a report.

Log complete information of an event with accurate timestamps.

Manual and Automated Control

• eTools has a provision to manually send control signals by clicking on-screen command buttons to  operate remote breakers, relays and equipment using MODBUS communicated I/O devices.
• Use the EMS Callbook feature to perform automated control over distributed equipment:
• Supports a wide range of applications:

  o Switch on/off non priority loads to maintain demand under limits, remote loads,etc

  o Switch On/Off capacitor banks to correct power factor, optimize Demand and avoid penalties.

• The main components of eTools Software are:

  o Network Management and Configuration Module

  o Viewer for front end GUI

• Reporter

  o Alarm Module for pop-up alarms

  o Query Wizard Processor for Data analysis

  o SMS Server for sending emails on alters

  o Web Server for distribution of viewer views over LAN/WAN/WWW.

  o Schedulers for report generation & distribution

The RM 808H is an AC Static Three-phase CT Operated Electronic Multi-tariff Multi function Energy Meter that measures basic Power and Energy parameters and controls the load based on energy consumption. The meter has an option of measuring the ABT Parameters and can be integrated with any ABT System. It has the TOD measurement and prepayment control for active energy.  The RM 808H is rugged in construction andmonitors a wide load range with high sensitivity and low power loss. It features abuilt in Tamper events capture, RTC and high-speed communication modules. All features comply with the relevant requirements of Indian and International standards.

Features

1. The meters come with a built-in RS-485/RS-232 communication port and the MODBUS RTU Communication Protocol.

2. The Front – end IR Communication port can be used to download data for stand-alone meter applications.

3. Monitors, Displays and transmits:

• Voltage & Current (Phase & Line)
• PF (Phase & Line)
• KW, KVA & KVAR (Phase & Line)
• HZ
• KWh, KVARh (Lag & Lead), KVAh
• Maximum Demand

4. Billing Reset & Records: The billing periods are user definable. The user can reset billing parameters in two modes - Auto and Manual. The meter also has the option of resetting billing data for a predefined date. The billing data is selectable on a monthly/bimonthly basis. The meter stores the last 12 months’ billing data, which can be downloaded as per the users convenience.

5. TOD Setting: The user can program 18 different Time zones for recording Energy & Demand.

6. Maximum Demand: The meter measures maximum demand on fixed window as well as sliding window integration. The demand interval is user selectable from 5 min to 60 min

7. Tamper & Fraud Detection:  The meter detects, records the following events

• Missing Neutral
• Current Failure
• Current reversal
• Magnetic Interference
• Power failure
• Voltage Imbalance
• Current Unbalance
• Phase reversal

8. Load Survey – The meter records KWh, KVARh, KVAh, MD parameters at 15-minute intervals for a period of one month.

9. Load on Hours : The meter measures displays, stores and transmits the load on hours. The parameter is useful for the equipment monitoring.

The RM 102 is a LT AC Static Single-phase Electronic Multi-tariff Multi function Energy Meter that measures basic power and energy parameters and controls load based on energy consumption. It has TOD measurement and prepayment control for active energy. This Meter is rugged and useful for construction and also monitors a wide load range with high sensitivity and low power loss. It features a built-in Tamper Events Capture, RTC and high-speed communication modules. Not only is the RM 102 the best choice for standalone or integrated AMR/AMI applications, it is also compliant withIndian and International standards.

Features

1. The meter comes with a built-in RS-485/RS-232 communication port supported by the MODBUS RTU Communication Protocol.

2. The Front – end IR Communication port can download data for stand-alone meter applications.

3. Monitors, Displays and Transmits

• Voltage & Current
• PF
• KW, KVA & KVAR
• HZ
• KWh, KVARh, KVAh
• Maximum Demand

4. Billing Reset & Records: Billing periods are user definable. The user can reset billing parameters either in auto mode or manual mode. The meter also has the option of resetting billing data for a predefined date. The billing data is selectable on a monthly/bimonthly basis. The meter stores the last 12 months’ billing data, which can easily be downloaded.

5. TOD Setting: The user can program 18 different time zones for recording Energy & Demand.

6. Maximum Demand: The meter measures maximum demand on fixed window integration. The demand interval is user selectable from 5 min to 60 min

7. Tamper & Fraud Detection:  The meter detects, records the following events

• Missing Neutral
• Current Failure
• Current reversal
• Magnetic Interference
• Power failure

8. Load Survey – The meter records KWh, KVARh, KVAh, MD parameters at 15-minute intervals for a period of one month.

9. Load on Hours: The meter measures displays, stores and transmits the load on hours. This parameter is useful for equipment monitoring

The RM 705R/ RM 808H are AC Static Three-phase CT Operated Electronic Multi-tariff Multi function Energy Metersthat measurebasic Power and Energy parameters and controlthe load based on energy consumption. They feature TOD measurement and prepayment control for active energy. Thesemetersare rugged in construction, and monitor a wide load range with high sensitivity and low power loss. The metersfeature a built in Tamper Events Capture, RTC and high-speed communication modules. The RM 705R/RM 808H are the best choice for standalone or integrated AMR/AMI applications. All features comply with Indian and International standards.

Features

1. The meters come with a built-in RS-485/RS-232 communication port and the MODBUS RTU Communication Protocol.

2. The Front – end IR Communication port can be used to download data for stand-alone meter applications.

3. Monitors, Displays and transmits:

• Voltage & Current (Phase & Line)
• PF (Phase & Line)
• KW, KVA & KVAR (Phase & Line)
• HZ
• KWh, KVARh (Lag &Lead ), KVAh
• Maximum Demand

4. Billing Reset & Records: The billing periods are user definable. The user can reset billing parameters in two modes - Auto and Manual. The meter also has the option of resetting billing data for a predefined date. The billing data is selectable on a monthly/bimonthly basis. The meter stores the last 12 months’ billing data, which can be downloaded as per the users convenience.

5. TOD Setting: The user can program 18 different Time zones for recording Energy & Demand.

6. Maximum Demand: The meter measures maximum demand on fixed window as well as sliding window integration. The demand interval is user selectable from 5 min to 60 min

7. Tamper & Fraud Detection:  The meter detects, records the following events

• Missing Neutral
• Current Failure
• Current reversal
• Magnetic Interference
• Power failure
• Voltage Imbalance
• Current Unbalance
• Phase reversal

8. Load Survey – The meter records KWh, KVARh, KVAh, MD parameters at 15-minute intervals for a period of one month.

9. Load on Hours: The meter measures displays, stores and transmits the load on hours. The parameter is useful for the equipment monitoring.

The RM 1003(10A - 100A) and RM 0403(5A- 40 A) are LT AC Static Three-phase Electronic Multi-tariff Multi function Energy Metersthat measure basic Power and energy parameters, and controlthe load based on energy consumption. The meters have the TOD measurement and prepayment control for active energy.  Rugged in construction, the meters monitor a wide load range with high sensitivity and low power loss.

They feature built-in Tamper events capture, RTC and high-speed communication modules. The RM 1003 and 403 are the best choice for standalone or integrated AMR/AMI applications. All features comply with Indian and International standards.

Features

1. The meters come with a built-in RS-485/RS-232 communication port and the MODBUS RTU Communication Protocol.

2. The Front – end IR Communication port can be used to download data for stand-alone meter applications.

3.Monitors, Displays and transmits:

• Voltage & Current (Phase & Line)
• PF (Phase & Line)
• KW, KVA & KVAR (Phase & Line)
• HZ
• KWh,KVARh (Lag &Lead ),KVAh
• Maximum Demand

4. Billing Reset & Records: The billing periods are user definable. The user can reset billing parameters in two modes - Auto and Manual. The meter also has the option of resetting billing data for a predefined date. The billing data is selectable on a monthly/bimonthly basis. The meter stores the last 12 months’ billing data, which can be downloaded as per the users convenience.

5. TOD Setting: The user can program 18 different Time zones for recording Energy & Demand.

6. Maximum Demand: The meter measures maximum demand on fixed window as well as sliding window integration. The demand interval is user selectable from 5 min to 60 min

7. Tamper & Fraud Detection:  The meter detects, records the following events

• Missing Neutral
• Current Failure
• Current reversal
• Magnetic Interference
• Power failure
• Voltage Imbalance
• Current Unbalance
• Phase reversal

8.Load Survey – The meter records KWh, KVARh,KVAh, MD parameters at 15-minute intervals for a period of one month.

9.Load on Hours : The meter measures displays, stores and transmits the load on hours. The parameter is useful for the equipment monitoring.
